Atterberg Limits Testing in Limerick for Ground Engineering Projects

One of the most common mistakes we see in Limerick is contractors assuming the ground is consistent across a site just because it looks the same from the surface. The city sits on a mix of glacial tills, alluvial deposits along the Shannon, and the classic limestone-derived clays that behave very differently depending on moisture content. We have seen earthworks grind to a halt near the Docklands area because the clay turned slick and unworkable after a week of rain, something a simple set of Atterberg limits tests would have flagged before the diggers moved in. The liquid limit and plastic limit define the moisture range where fine-grained soil remains stable, and ignoring those numbers on a Limerick project means you are gambling with the programme. Pairing this classification with a grain-size analysis provides a full picture of the material you are dealing with, especially where silts and clays interlayer unpredictably.

A plasticity index above 25 percent on Limerick clay almost always means you need a plan for volume change, not just during construction but season after season.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Methodology and scope

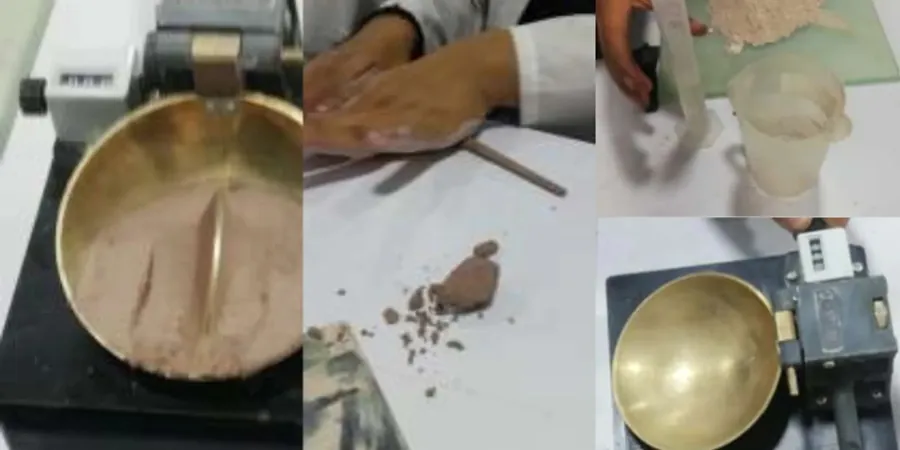

The test itself is methodical, almost old-school, and that is why we trust it. We use a Casagrande cup device, the brass apparatus with a crank that drops the cup exactly 10 mm onto a hard rubber base, alongside a standard grooving tool to cut the paste. The plastic limit is determined by rolling threads of soil on a glass plate until they crumble at roughly 3 mm diameter, a technique that takes a steady hand and a bit of patience. In our Limerick laboratory, all samples are first oven-dried at 105 degrees Celsius, then passed through a 425-micron sieve before the test begins. What matters for the final report is the plasticity index, the numerical difference between the liquid and plastic limits, which tells you whether the clay will swell, shrink, or stay put when the weather changes. For projects on the boulder clay that underlies much of Limerick's suburbs, this index often dictates the earthworks specification and whether lime stabilisation is needed. We often recommend following up with a triaxial test when the plasticity index exceeds 20 percent, as it signals a soil that may develop pore pressure issues under load.

Atterberg Limits Testing in Limerick for Ground Engineering Projects — Technical reference — Limerick

Local considerations

A warehouse extension in the Raheen industrial area is a good example of what goes wrong when Atterberg limits are skipped. The subgrade was a stiff grey clay during the summer site investigation, and the design assumed a low-plasticity material. By the time foundations were poured in November, the same clay had absorbed months of Limerick's persistent drizzle and was behaving like a medium-plasticity soil with completely different bearing characteristics. The contractor had to strip an extra 600 mm and import granular fill, a change order that could have been avoided with classification testing done across seasonal moisture conditions. The real hazard is differential movement: slabs on grade, access roads, and shallow footings all react to clay shrinkage in dry spells and swelling in wet periods. Limerick's climate, with rainfall exceeding 1000 mm annually and no real dry season, means the moisture content in the active zone near the surface is constantly fluctuating. Getting the Atterberg limits early in the design phase lets the engineer decide whether to remove the material, stabilize it with lime, or design the structure to accommodate the movement.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.co

Applicable standards

IS EN 17892-12:2018 — Laboratory testing: Determination of liquid and plastic limits, BS 1377-2:1990 — Soils for civil engineering purposes: Classification tests, Eurocode 7 (IS EN 1997-2:2007) — Ground investigation and testing

Technical parameters

Parameter	Typical value
Liquid Limit (LL)	BS 1377-2 / IS EN 17892-12, Casagrande method; reported as moisture content in percent
Plastic Limit (PL)	BS 1377-2 / IS EN 17892-12, thread-rolling method; moisture content at which soil crumbles
Plasticity Index (PI)	Calculated: LL minus PL; dimensionless, indicates soil reactivity
Liquidity Index (LI)	Calculated: (w - PL) / PI; indicates in-situ consistency state
Consistency Index	Calculated: (LL - w) / PI; alternative measure of firmness
Sample Preparation	Oven-dried at 105°C, sieved to 425 µm per IS EN 17892-1
Reporting Standard	IS EN 17892-12:2018, compliant with Eurocode 7 ground investigation requirements
Turnaround	Standard 3 working days; express 24-hour available for Limerick city projects

Frequently asked questions

What is the typical turnaround for Atterberg limits testing in Limerick?

Our standard turnaround is three working days from sample arrival. If you are on a tight schedule, we can provide results within 24 hours for an express surcharge, which works well for Limerick city centre projects where earthworks decisions cannot wait.

How much does Atterberg limits testing cost per sample?

The cost ranges from €60 to €100 per sample depending on whether you need just the liquid and plastic limits or the full classification with shrinkage limit and reporting. We provide a firm quote once we know the number of samples and the testing scope.

How many samples do I need for a site investigation in Limerick?

That depends on the site variability, but for a typical residential development on glacial till you would want at least one sample per distinct soil layer encountered, with a minimum of three across the site. On larger commercial projects near the Shannon estuary, where alluvial clays can change over short distances, we often test every meter of depth in the cohesive deposits.

What is the Casagrande method and why is it still used?

The Casagrande cup method, standardized in IS EN 17892-12, uses a brass cup dropped repeatedly from 10 mm height to determine the liquid limit. It has been around since the 1930s and remains the reference method because the correlation with soil behavior is backed by decades of case histories. Cone penetrometer alternatives exist, but for Irish clays the Casagrande method gives more repeatable results in our experience.

What do I do if the plasticity index comes back above 25 percent?

A plasticity index above 25 percent indicates a highly plastic clay that will experience significant volume change with moisture fluctuations. In Limerick, where annual rainfall is high and evaporation is low, this usually means the soil will remain on the wet side of the plastic limit. The practical response is typically one of three options: remove and replace with granular fill, stabilize the clay with lime or cement, or design foundations and slabs that can tolerate the expected movement, often with deeper bearing depths and reinforcement.
