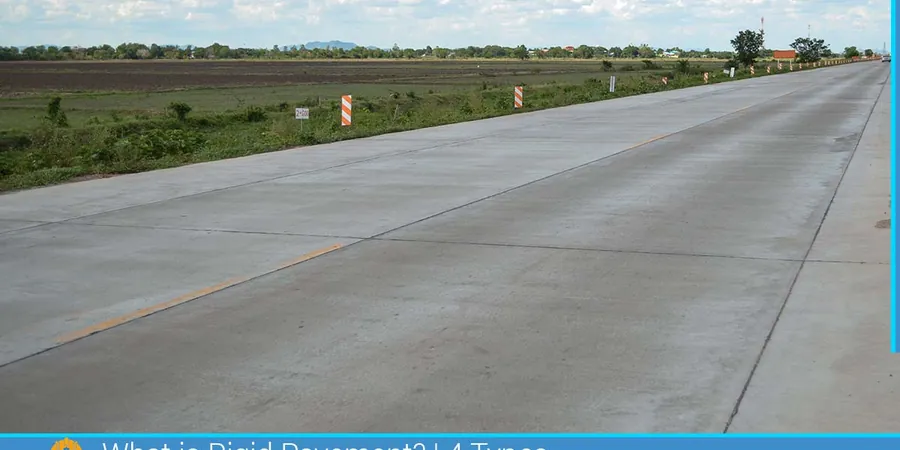

Rigid Pavement Design for Limerick’s Ground Conditions

IS EN 13877-1:2013 governs the structural design of concrete pavements in Ireland, and in Limerick that standard must be interpreted through a very specific local lens. The city sits on a mix of Carboniferous limestone bedrock and overlying alluvial deposits from the River Shannon, creating abrupt transitions in bearing capacity across relatively short distances. For rigid pavement design in Limerick, we find that joint spacing and slab thickness cannot be taken from generic tables. The thermal expansion characteristics of Irish limestone aggregates, combined with saturated winter subgrades, produce curling stresses that differ measurably from what a Dublin-based design would anticipate. Our team combines the CBR road investigation to establish foundation stiffness with a detailed review of drainage performance, because standing water on the formation accelerates pumping failures at transverse joints.

In Limerick, joint performance dictates pavement life: we design for a temperature range of -6°C to 34°C with saturated subgrade conditions.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Methodology and scope

The contrast between Limerick’s medieval core and the newer industrial estates around Raheen tells the story of pavement design in this city. In the older city centre, where streets follow the contours of the island between the Shannon and Abbey Rivers, we encounter made ground up to three metres deep overlying soft silty clays. Rigid pavement here needs thickened edge beams and dowelled joints to bridge localised settlement pockets. Out in Raheen, the glacial till is dense and well-graded, giving CBR values above 8%, which allows a more conventional slab-on-grade approach. Across both zones, limestone karst features introduce a risk of void formation, and we often recommend a resistivity survey before finalising the pavement cross-section. The slab reinforcement strategy changes depending on whether the subgrade is classified as stiff, medium, or variable. In our experience, the single biggest mistake in Limerick is under-specifying the sub-base drainage layer for winter conditions, when the water table rises close to formation level.

Rigid Pavement Design for Limerick’s Ground Conditions — Technical reference — Limerick

Local considerations

Limerick’s expansion during the 19th century, when Newtown Pery was laid out on reclaimed marshland, left a legacy of variable fill that still complicates pavement engineering today. Ground-penetrating radar and historical maps frequently reveal old culverts, buried river channels, and undocumented cellars beneath proposed pavement alignments. The risk is not just uneven settlement. In rigid pavements, a differential movement of 3 mm across a contraction joint can initiate corner cracking within the first two years of service. On the Dock Road corridor, where heavy goods vehicles account for over 12% of daily traffic, we design for a 30-year service life with fatigue consumption verified against TII rigid pavement standards. Karst dissolution beneath limestone pavement areas adds another dimension: a sudden loss of support under a slab panel converts it into a cantilever, and the reinforcement must be detailed accordingly. Our design approach treats each Limerick pavement section as a structure, not a surface layer.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.co

Applicable standards

IS EN 13877-1:2013 – Concrete pavements – Part 1: Materials, IS EN 13877-2:2013 – Concrete pavements – Part 2: Structural design, TII Publication CC-SPW-01200 – Rigid pavement design, NRA Series 800 – Road pavements – Unbound materials, IS EN 206:2013 – Concrete specification and conformity

Technical parameters

Parameter	Typical value
Design standard for concrete pavements	IS EN 13877-1:2013
Typical slab thickness range	180 mm to 280 mm
Joint spacing (unreinforced)	4.0 m to 5.5 m
Minimum CBR for rigid pavement subgrade	≥ 5% (after improvement)
Concrete flexural strength class	F4.5 to F5.5
Sub-base type	CBM or unbound granular per NRA Series 800
Dowel bar diameter (typical)	25 mm to 32 mm
Karst mitigation measure	Geogrid + geotextile separation layer

Frequently asked questions

What is the typical cost range for rigid pavement design in Limerick?

For a rigorous pavement design package covering the Limerick area, fees generally range from €1.750 to €5.560 depending on site length, number of investigation points, and whether karst risk assessment is required.

How do Limerick's karst limestone conditions affect rigid pavement design?

Karst features create a risk of void formation beneath the slab. We incorporate a geogrid-reinforced separation layer over the sub-base and may specify resistivity or GPR surveys to map potential cavities before finalising the slab thickness and reinforcement layout.

Which Irish standards govern concrete pavement joint design?

Joint layout and structural design follow IS EN 13877-2:2013 and TII Publication CC-SPW-01200. These define contraction joint spacing, dowel bar sizing, and tie bar requirements for tied shoulders and longitudinal joints.

How long does the design process take for a rigid pavement in Limerick?

From initial site investigation review to issue of construction drawings, a typical Limerick rigid pavement design takes three to five weeks, assuming ground investigation data is available and no complex karst mitigation studies are needed.
